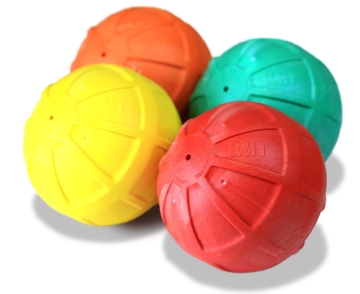

Blast Movement Monitors

Mine On-Line Service in co-op with Blast Movement Technologies (BMT) provides a unique solution to accurately measure 3-dimensional blast movement, significantly increasing ore yield, allowing you to ‘Get More’ from your resource.

This information enables blast engineers, production geologists and pit foremen to make better decisions on the ore-waste boundaries in order to minimise ore loss and dilution.


Features

Blast Anytime

  • Activated upon sensing a blast
  • Remain in a dormant state until activated
  • Move with the blast material
  • Post-blast position is detected
  • Optional activation delay in 1-hour increments
  • Installation can occur days or weeks ahead of blast

Standard

  • Activated at installation time
  • Transmit once activated
  • Move with the blast material
  • Post-blast position is detected
  • Optional activation delay in 4-hour increments


Detector

The Detector senses and records the location of BMMs in the blast pattern (pre-blast) and muckpile (post-blast). The detected BMM location data is transferred to the BMM Explorer software.


Standard Detector

  • Senses BMM depth in the muckpile
  • Able to detect BMMs up to a depth of 20m

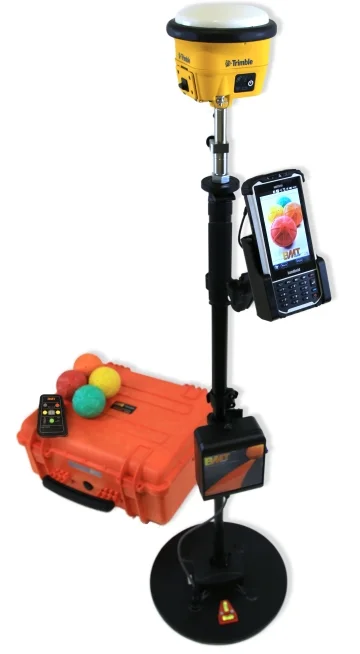

Survey Enabled Detector

  • Senses BMM depth in the muckpile
  • Records BMM location to 10cm (4 in) location accuracy
  • Able to detect BMMs up to a depth of 20m
  • Compatible with Leica and Trimble GNSS receivers
  • Integrated survey reduces time on the muckpile
